• On grid: 800W.
• Back up: 1200W.
• Battery voltage: 20~58Vdc, 35A max.
• 2 MPPT trackers, 800W max.
• UPS level switching <10ms.
• Smart APP real-time monitoring.
• Support Intelligent shutoff.
• IP class: IP66.

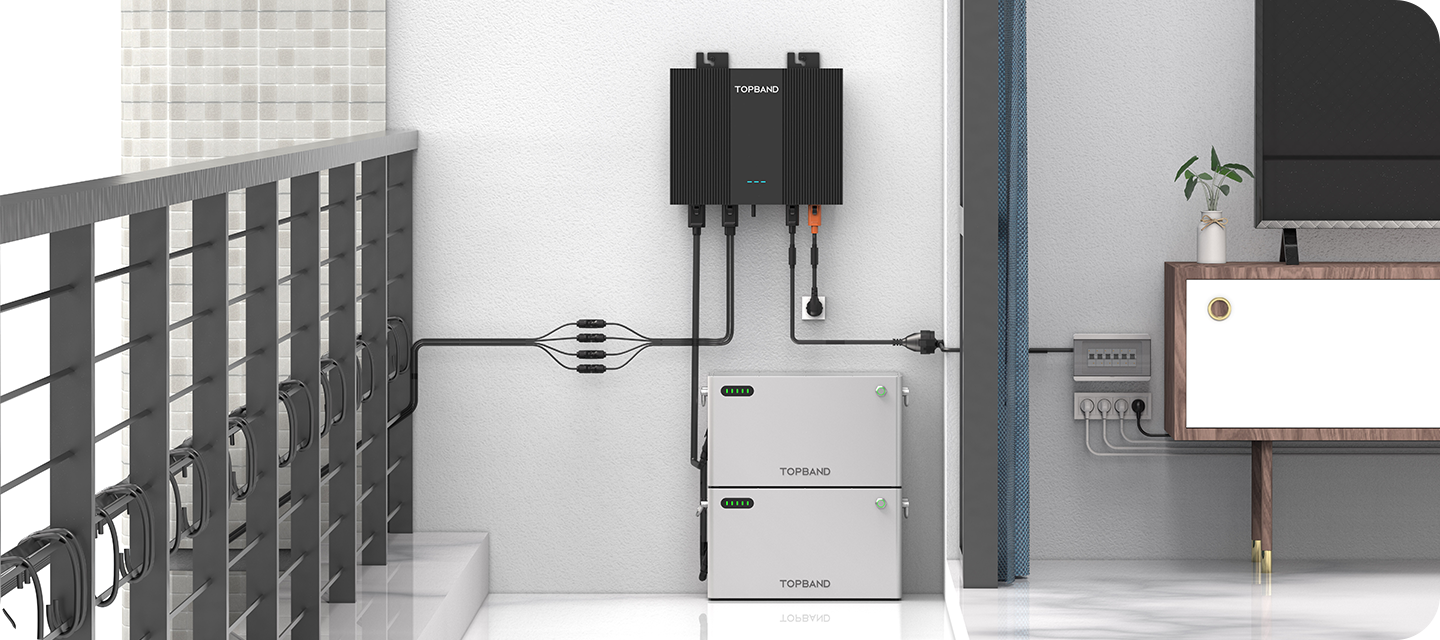

Balcony energy storage solutions are ultra-small distributed photovoltaic systems, also known as plug-in photovoltaic systems, that are compact in layout, small in size, and easy to install or move away from.
ModelP1-1200HMI
Nominal voltage range12~53Vdc
Input voltage range12~57Vdc
Max. Input DC voltageMax.59Vdc
Input current14A
Standby power dissipationMax.4W
Reverse inputNonsupport
MPPT Tracker 2
Input voltage range28-59Vdc
Max. Input DC VoltageMax.659Vdc
Inrush currentNo requirement
Input current35A
Leakage currentMax.0.5
No-load power dissipationMax.6W
Reverse InputNonsupport
Single-phase | Back up 1200W
Single-phase | Back up 2000W
Single-phase | Back up 3000W
Maximum storage: 4*2kWh
